Features
•Engineered to Last.
•Carefully designed and analyzed using CAD packages.
•Custom Solutions / operation modes available.
•Frame and other components are manufactured in UAE.
•Hydraulic components are sourced globally from reputed brands and assembled in UAE
| Material Options | Mild SteelStainless Steel |
|---|---|
| Folding options | Full SwingWith Internal OverhangSplit Opening |
| Actuator | Hydraulic Actuator |
| Operation | Push Button |
| Options | Remote ControlObtacle Sensor |
| Height | Upto 4000mm |
| Width | Upto 8000mm |
| Finish | Powder Coated RAL Colors |

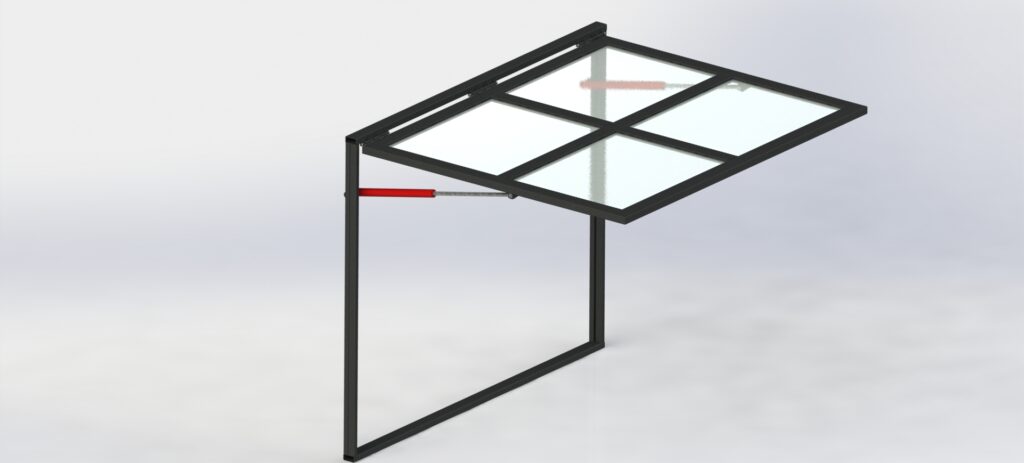

Full Swing
- Hinge on the outside of building
- Panel is swung outside to open.
- Maximum Canopy

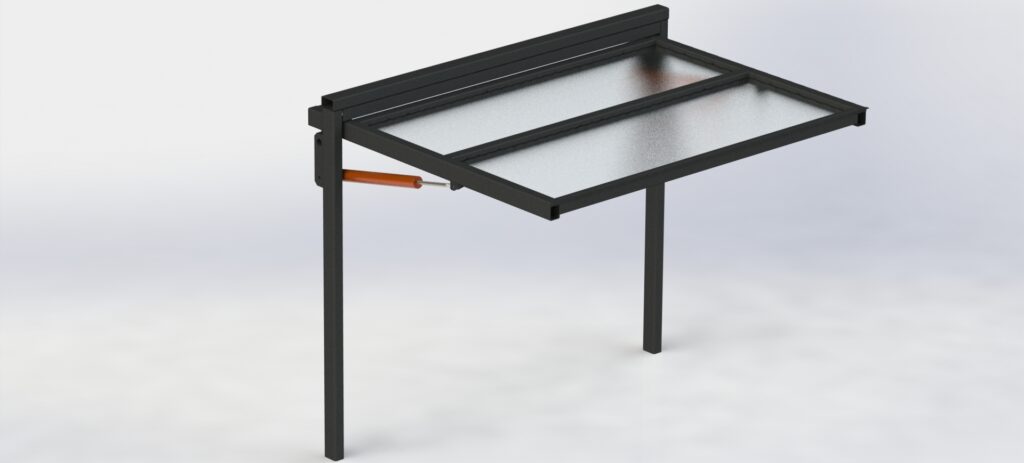

Internal Overhang
- Hinge on the inside of building
- Lower portion of the panel is swing outside to open.
- Top portion of the panel swings inward
- Ideal for cladding with architectural elements

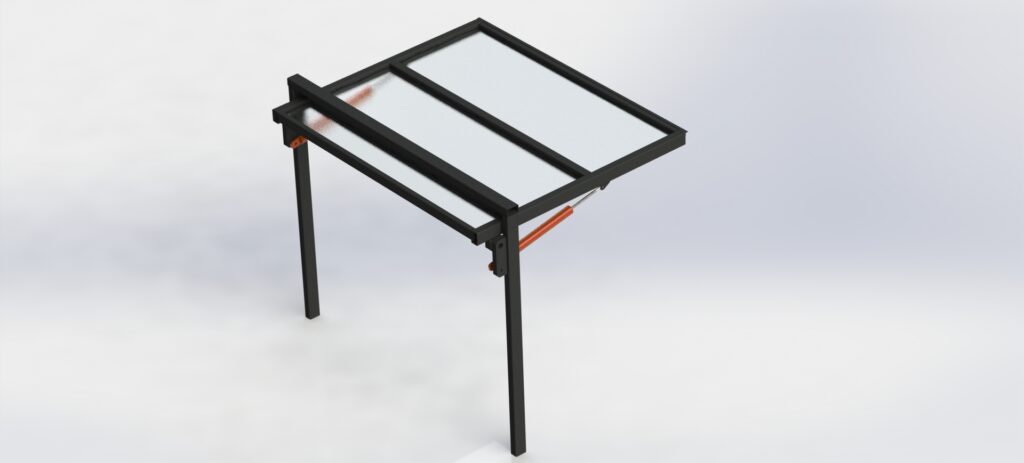

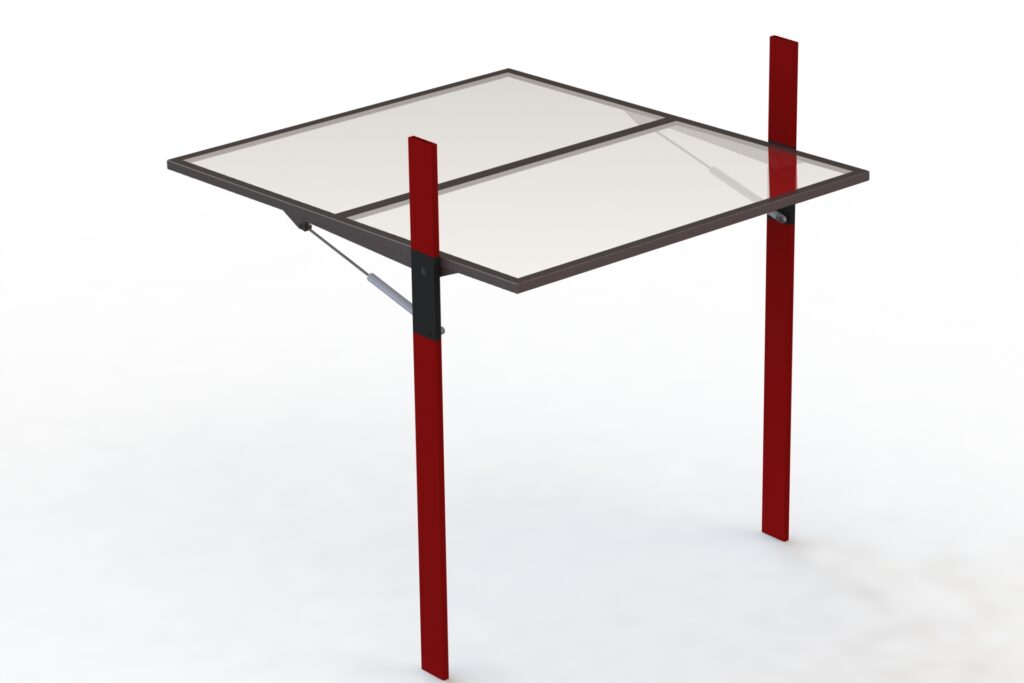

Split Opening
- Hinge on the side post
- Lower portion of the panel is swung outside to open.
- Top portion of panel swing inward
- Ideal for cladding with architectural elements
